REINOGRIP bend 15° to 90°

The change of direction with a bite for your pipe system — safe and quick to install

REINOGRIP arches can be installed quickly and safely. This saves you valuable time and installation costs. Even without internal pressure, the clutch provides sufficient longitudinal frictional connection. All components of the clutch are made of plastic and are therefore corrosion-free. The coupling body is even made of stress crack-resistant PE100-RC. You can choose between the versions with one and two couplings to make your pipe system even more flexible.

Technical data

Tender text

PE100 fittings with REINOGRIP pull-resistant push-fit coupler

General preliminary remark

The fittings to be offered must be made of material in accordance with the PE100+ Association and comply with DIN EN 12201 in terms of dimensions, tolerances and quality requirements. Proof of production on the basis of a quality assurance system in accordance with DIN EN ISO 9001 must be provided. A certificate in accordance with DIN EN 10204 must be provided by the manufacturer for all molded parts. Alternatively, the body of the molded part must be manufactured from a single piece of homogeneous semi-finished material using the injection molding process, even for more complex structures, in order to ensure the required reinforcement and thus high stability of the molded part. Semi-finished products made from winding rod or other subsequently applied reinforcements are not permitted. The tension-resistant plug-in connections must have grip elements with at least 5 grip teeth each made of high-strength plastic, which are arranged on spring-loaded holders. An elastomer ring must ensure that the grip is self-activating. An elastomer profile ring must be fitted at the inlet of the plug connection as a wiper to prevent the ingress of dirt. A pressure-tight lip seal system 3S in drinking water quality must be installed as a media seal. Spigot ends on the formed parts must be long in order to be able to carry out both plugging and HE butt welding or HW welding. Flange connection dimensions must comply with DIN EN 1092–1.

Weiterlesen
Flange connections must be of either the loose-flange type or the fixed-flange type (same nominal diameter) depending on the counterflange type. The backing flanges must be manufactured from corrosion-free, fibre-reinforced plastic. The stub and flange must interlock in a positive fit at their connecting surfaces and the flange must provide additional support to the stub from outside so as to counteract deformation. As a result, the flange connection is fully pressure-resistant according to the pipe dimensioning. The backing flange is permanently connected to the welding stub. If no other gasket is present for system-inherent reasons, the use of a profile gasket for flat-sealing stubs is recommended.
Hydrant connection flanges must have an outwardly reinforced weld seam area designed for the hydrant load; N 80 -> 110 mm outer diameter and DN 100 -> 135 mm outer diameter. The backing flange is manufactured from corrosion-free, fibre-reinforced plastic, supports the PE stub from outside and provides a plate spring function that maintains the pretension after the bolts have been tightened.

Optionally available versions: Flange with O‑ring seal, socket for smooth spigot or bayonet spigot (sockets for hydrants) at the outlet of the hydrant fittings, version for PVC‑U, PP‑R or PP‑H pipes.

Standards/guidelines

DIN EN 12201, DIN EN 1092–1, DVS 2207, DVS 2210, DIN EN 10204, DIN EN ISO 9001, DIN EN ISO 50001, DVGW W 400–2, DVGW GW 335

Permits/certificates

DVGW: DW-8616CP0454, DV-8606BT0423, DV-8611BT0424

Acceptance test certificate 3.1 according to DIN EN ISO 10204 for the semi-finished material from the processed raw material with indication of MFR and OIT; only PE100 material in compliance with PE100+ Association

Manufacturer certified according to ISO 9001:2015 and ISO 50001:2011

Manufacturer:

Reinert-Ritz GmbH or equivalent

Performance specification:
1. PE100 double coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for PE100 pipe of the size
DN/OD [d₁] …

SDR …

Operating pressure … bar

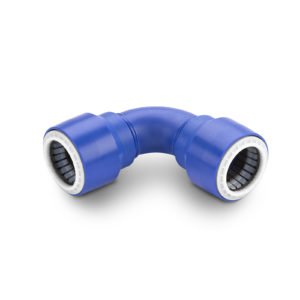

1. PE100 bend 1 x d, with push-fit coupling on both sides, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for PE100 pipe of the size
DN/OD [d₁] …

SDR …

… degrees

Operating pressure … bar

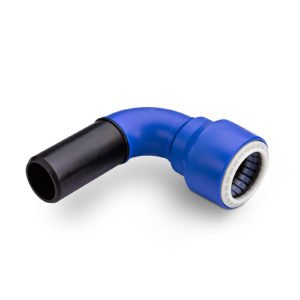

1. PE100 bend 1 x d, with push-fit coupler on one side, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for PE100 pipe of the size
DN/OD [d₁] …

SDR …

… degrees

Operating pressure … bar
1. PE100 tee, with all-round push-fit coupling, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for PE100 pipe of the size
DN/OD₁ [d₁] …

DN/OD₂[d₂] …

SDR …

Operating pressure … bar
1. PE100 tee with HP flange outlet, with push-fit couplers in the run pipe, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for PE100 pipe of the size
DN/OD [d₁] …

SDR …

DN …

PN … drilled

Operating pressure … bar
1. PE100 concentric reducer, with push-fit coupling on both sides, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for PE100 pipe of the size
DN/OD₁ [d₁] …

DN/OD₂ [d₂] …

SDR …

Operating pressure … bar
Read more
1. PE100 concentric reducer, with coupler on one side, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, second side long for HW welding , for PE100 pipe of the size
DN/OD₁ [d₁] …

DN/OD₂ [d₂] …

SDR …

Operating pressure … bar
1. PE100 repair coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and bolt preload for secure fixing, for pipes of the size
Material 1: □ PE100 □ PVC □ PP

DN/OD₁ [d₁] …

SDR …

Material 2: □ PE100 □ PVC □ PP

DN/OD₁ [d₁] …

SDR …

Operating pressure … bar
1. PE100 push-fit socket, consisting of push-fit coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, and HP flange for PE100 pipe of the size
DN/OD₁ [d₁] …

SDR …

DN …

PN …

Operating pressure … bar
1. PE100 telescope repair set, with push-fit coupling on both sides, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, for pipes of the size
Material 1: □ PE100 □ PVC □ PP

DN/OD₁ [d₁] …

SDR …

Material 2: □ PE100 □ PVC □ PP

DN/OD₁ [d₁] …

SDR …

Operating pressure … bar
1. PE100 duckfoot bend for connection to hydrant, reinforced design, with push-fit coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with adapter for hydrants with bayonet spigot, for pipes of the size
DN/OD₁ [d₁] …

SDR …

Operating pressure … bar
1. PE100 hydrant end piece for service line connection, reinforced design, with push-fit coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with adapter for hydrants with bayonet spigot, for pipes of the size
DN/OD₁ [d₁] …

SDR …

DN/OD₃ [d3] …

SDR …

Operating pressure … bar
1. PE100 tee for connection to hydrant, reinforced design, with push-fit coupler on both sides, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with adapter for hydrants with bayonet spigot, for pipes of the size
DN/OD₁ [d₁] …

SDR …

Operating pressure … bar
1. PE100 cross for connection to hydrant, reinforced design, with all-round push-fit coupling„ pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with adapter for hydrants with bayonet spigot, for pipes of the size
DN/OD₁ [d₁] …

SDR …

Operating pressure … bar
Read more
1. PE100 X‑cross for connection to hydrant, reinforced design, with all-round push-fit coupling„ pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with adapter for hydrants with bayonet spigot, for pipes of the size
DN/OD₁ [d₁] …

SDR …

Operating pressure … bar
1. PE100 duckfoot bend for connection to hydrant, reinforced design, with push-fit coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with special flange connection (VP flange) of the same nominal diameter with fibre-reinforced backing flange at outlet, drilled according to DIN EN 1092–1, with spring effect for continuous bolt preload, for pipes of the size
DN/OD₁ [d₁] …

SDR …

DN …

Operating pressure … bar
1. PE100 hydrant end piece for service line connection, reinforced design,with push-fit coupler, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with special flange connection (VP flange) of the same nominal diameter with a fibre-reinforced backing flange at the outlet, drilled according to DIN EN 1092–1, with spring effect for continuous bolt preload, for pipes of the sizes
DN/OD₁ [d₁] …

SDR …

DN …

DN/OD₃ [d3] …

SDR …

Operating pressure … bar
1. PE100 tee for connection to hydrant, reinforced design, with push-fit coupler on both sides, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with special flange connection (VP flange) of the same nominal diameter with fibre-reinforced backing flange at outlet, drilled according to DIN EN 1092–1, with spring effect for continuous bolt preload, for pipes of the sizes
DN/OD₁ [d₁] …

SDR …

DN …

Operating pressure … bar
1. PE100 cross for connection to hydrant, reinforced design, with all-round push-fit coupling, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with special flange connection (VP flange) of the same nominal diameter with fibre-reinforced backing flange at outlet, drilled according to DIN EN 1092–1, with spring effect for continuous bolt preload, for pipes of the sizes
DN/OD₁ [d₁] …

SDR …

DN …

Operating pressure … bar
1. PE100 X‑cross for connection to hydrant, reinforced design, with all-round push-fit coupling, pull-resistant according to DVGW, pressure class-compatible, with EPDM lip seal and dirt-repellent profile ring, with special flange connection (VP flange) of the same nominal diameter with fibre-reinforced backing flange at outlet, drilled according to DIN EN 1092–1, with spring effect for continuous bolt preload, for pipes of the sizes
DN/OD₁ [d₁] …

SDR …

DN …

Operating pressure … bar

Proof of delivery:
Reinert-Ritz GmbH
Ernst-Heinkel-Straße 2
48531 Nordhorn
Tel.: +49 5921 8347–0
Fax: +49 5921 8347–25
www.reinert-ritz.de
Email: contact@reinert-ritz.com
